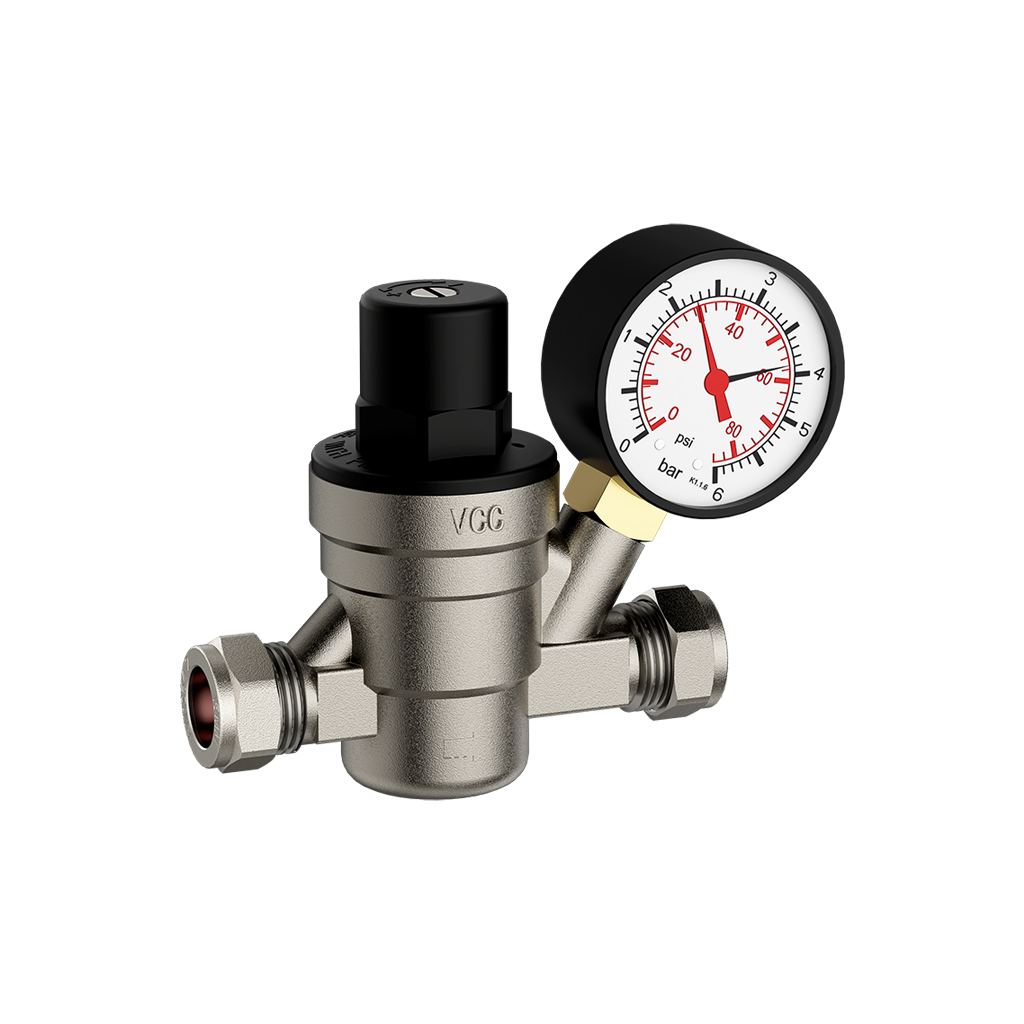

Pressure Reducing Valve-VHPRV001

The VCCHOME Pressure Reducing Valve is designed to regulate and maintain a stable downstream water pressure for domestic and commercial plumbing and heating systems. Featuring an adjustable outlet pressure range from 1 to 6 bar and an integrated pressure gauge for easy monitoring, it protects pipework, boilers, cylinders and water appliances from excessive pressure. Manufactured from premium CW617N brass, it delivers reliable performance, long service life and simple installation.

Technical Specifications:

Body Material: CW617N Brass
Valve Type: Adjustable Pressure Reducing Valve
Outlet Pressure Adjustment Range: 1–6 bar (14.5–87 psi)
Maximum Inlet Pressure: 16 bar (232 psi)
Working Temperature: -10°C to +100°C (14°F to 212°F)
Connection Thread: ISO 228 (Equivalent to DIN 259, BS 2779 & EN 1254-2)
Pressure Gauge: Included.
