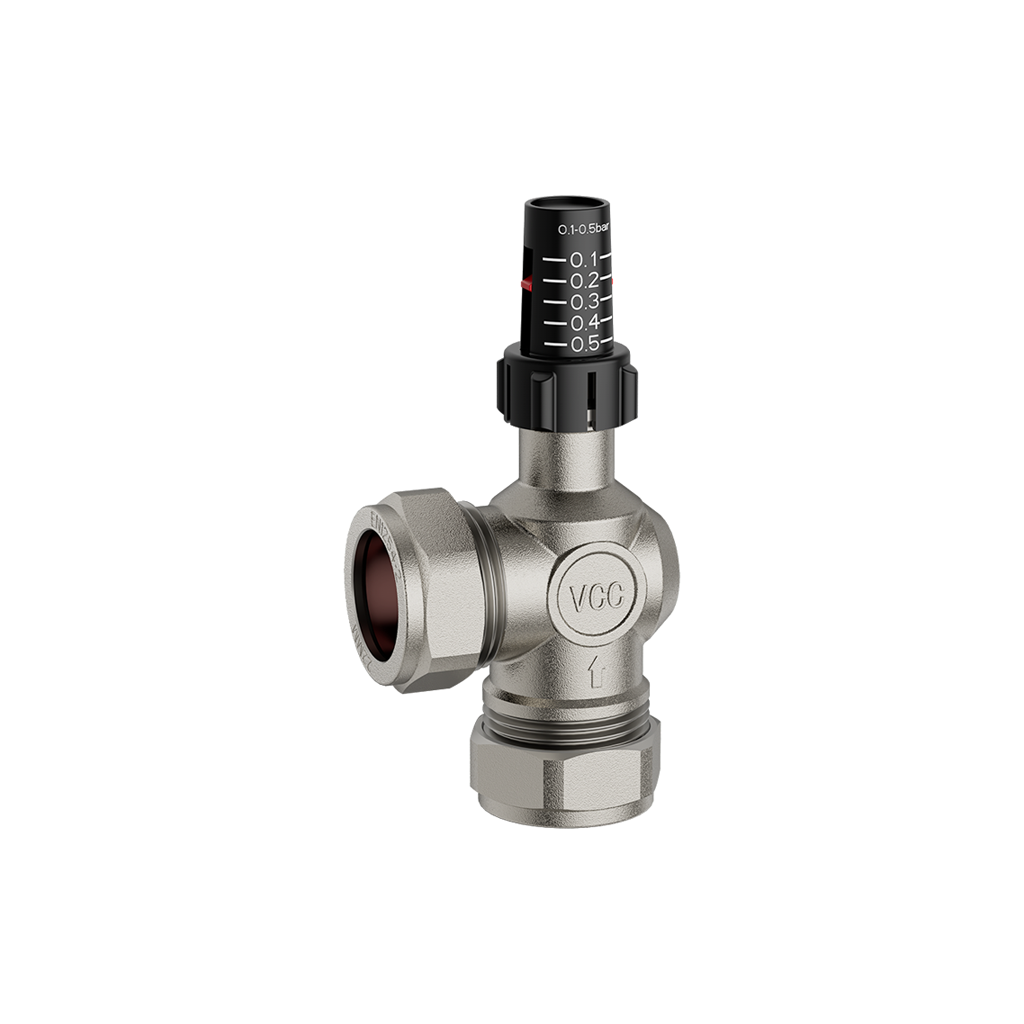

Angled Auto Bypass valve -VHBPV001

Product Description:

The VCCHOME Angled Automatic Bypass Valve is designed to automatically maintain the minimum water flow required in sealed central heating systems. It opens when system pressure increases, allowing water to bypass the heating circuit and protect boilers, pumps and other components from excessive pressure and restricted flow. The straight valve configuration is ideal for direct pipe installations, while the adjustable bypass pressure range of 0.1–0.5 bar ensures reliable system performance and energy efficiency.

Key Features:

Design for floor-mounted pipe installations Adjustable bypass pressure range from 0.1 to 0.5 bar Automatically maintains minimum system flow Protects boilers and circulation pumps from excessive pressure Premium CW617N brass construction for long service life Suitable for sealed domestic and commercial heating systems.

Technical Specifications:

Body Material: CW617N Brass
Valve Type: Angled Automatic Bypass Valve
Maximum Working Pressure: 10 bar (145 psi)
Adjustable Pressure Range: 0.1–0.5 bar
Working Temperature: 0°C to 90°C
Standard: EN 1254-2
